4 Inch Carburized Steel DTH Drill Bit for Water Well Drilling and High Performance Down The Hole Bit

4 Inch Carburized Steel DTH Drill Bit for Water Well Drilling and High Performance Down The Hole Bit
4 Inch Carburized Steel DTH Drill Bit for Water Well Drilling and High Performance Down The Hole Bit 4 Inch Carburized Steel DTH Drill Bit for Water Well Drilling and High Performance Down The Hole Bit 4 Inch Carburized Steel DTH Drill Bit for Water Well Drilling and High Performance Down The Hole Bit 4 Inch Carburized Steel DTH Drill Bit for Water Well Drilling and High Performance Down The Hole Bit 4 Inch Carburized Steel DTH Drill Bit for Water Well Drilling and High Performance Down The Hole Bit 4 Inch Carburized Steel DTH Drill Bit for Water Well Drilling and High Performance Down The Hole Bit

Imagem Grande :  4 Inch Carburized Steel DTH Drill Bit for Water Well Drilling and High Performance Down The Hole Bit

Detalhes do produto:
Lugar de origem: Hunan, China
Marca: SOLLROC
Condições de Pagamento e Envio:
Quantidade de ordem mínima: 1
Preço: CN¥699.79
Contato

4 Inch Carburized Steel DTH Drill Bit for Water Well Drilling and High Performance Down The Hole Bit

descrição
Peso: 16 QUILOGRAMAS Material: Aço carburizado
Tipo de processamento: tratamento térmico e processo de usinagem Diâmetro do orifício: 105-130mm
Buracos de descarga: 2*18mm Peso do pedaço: 7,5-9,4 kg
Tipo de haste: DHD340 Botões de medição: 6×φ14, 7×φ13, 7×φ14, 8×φ14
Botões da frente: 5×φ13, 6×φ13, 6×φ14, 7×φ14 Diâmetro do bit: 105mm, 110mm, 115mm, 120mm, 127mm
buracos de ar: 2 Números de peças: DHD340-105, DHD340-110, DHD340-115, DHD340-120, DHD340-127
Materiais para botões: Carboneto de tungstênio Tipo de design: bit balístico
Método de perfuração: Perfuração DTH
Destacar:

4 Inch DTH Drill Bit

,

Carburized Steel Down The Hole Bit

,

Water Well Drilling DTH Hammer Bit

SOLLROC DHD340 4-Inch DTH Bit for Water Well Drilling
Product Overview
Sollrock manufactures tungsten carbide buttons in-house, maintaining complete control over production from raw material milling through pressing, sintering, and grinding. This vertical integration ensures superior quality control and precise composition of our drilling bits. The ballistic bit design is engineered for optimal penetration performance in today's demanding rock drilling applications, particularly effective in increasingly hard geological formations.
Manufacturing Excellence
  • Over 10 years of specialized experience in drilling tools and spare parts manufacturing
  • Advanced production technology and state-of-the-art equipment
  • Technical team with more than 13 years of professional expertise
Technical Specifications for 4" Hammer
DTH Bits Shank Bit Dia. (mm) Bit Dia. (inch) No. Air Holes Gauge Buttons Front Buttons Weight (Kg) Part No.
DHD340 105 4 1/8" 2 6×φ14 5×φ13 9.0 DHD340-105
DHD340 110 4 1/4" 2 7×φ13 6×φ13 9.3 DHD340-110
DHD340 115 4 1/2" 2 7×φ14 6×φ13 10.0 DHD340-115
DHD340 120 4 3/4" 2 8×φ14 6×φ14 11.0 DHD340-120
DHD340 127 5" 2 8×φ14 7×φ14 12.0 DHD340-127
Product Features
  • Ideal for water well drilling, micro piling, geothermal applications, and anchoring
  • Consistent and reliable performance in demanding conditions
  • Extended service life through superior material composition
  • Easy maintenance and replacement procedures
  • Stable operation and consistent drilling performance
Product Images

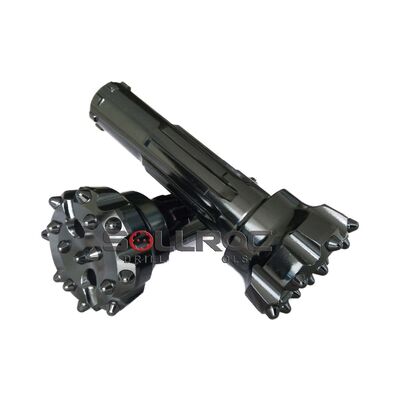

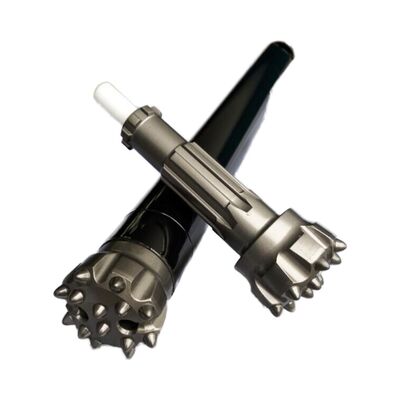

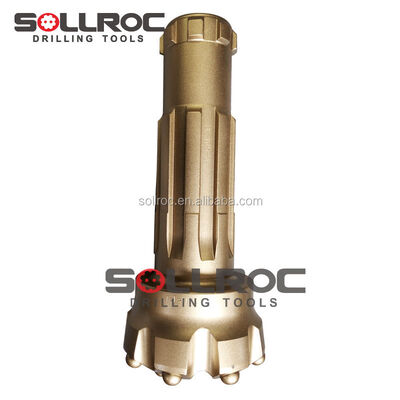

4 Inch Carburized Steel DTH Drill Bit for Water Well Drilling and High Performance Down The Hole Bit 0
4 Inch Carburized Steel DTH Drill Bit for Water Well Drilling and High Performance Down The Hole Bit 1
4 Inch Carburized Steel DTH Drill Bit for Water Well Drilling and High Performance Down The Hole Bit 2
Shipping & Packaging
Shipping Methods: By Air, By Sea, or By Express
Packaging: Ply-wooden cases with Pallet
Industry Keywords
  • Bits de botao DTH
  • brocas para martillos en cabeza
  • brocas de perforacion
  • martillos en cabeza
  • perforacion en terreno inestable
  • perforacion pozos de agua
  • micropilotaje
  • forage de roches
  • le forage de puits
  • Forage et
  • forage geothermique
  • forage du sol
  • des outils de forage
  • micropiling
  • ENQUÊTES Une rotopercussion
  • rock drilling
  • water well drilling
  • geothermal drilling
  • ground drilling
  • drilling tools
Related Products

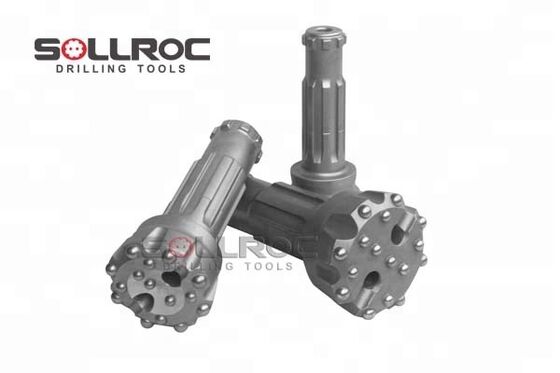

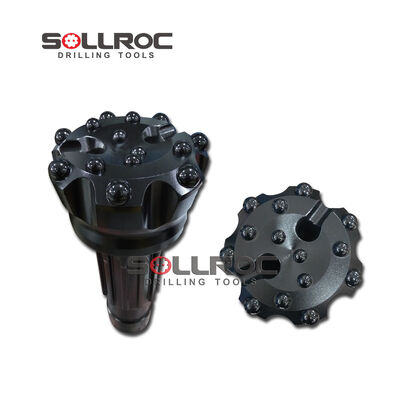

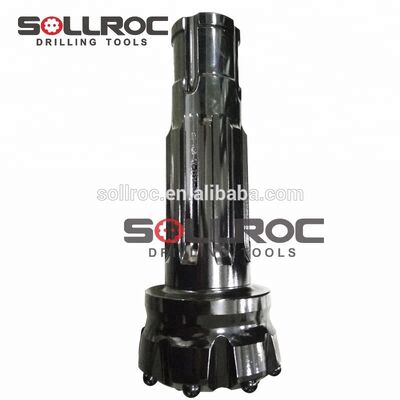

4 Inch Carburized Steel DTH Drill Bit for Water Well Drilling and High Performance Down The Hole Bit 3
