5 Inch Carburized Steel DTH Drill Bit for Water Well Drilling and Mining Applications

5 Inch Carburized Steel DTH Drill Bit for Water Well Drilling and Mining Applications
5 Inch Carburized Steel DTH Drill Bit for Water Well Drilling and Mining Applications 5 Inch Carburized Steel DTH Drill Bit for Water Well Drilling and Mining Applications 5 Inch Carburized Steel DTH Drill Bit for Water Well Drilling and Mining Applications 5 Inch Carburized Steel DTH Drill Bit for Water Well Drilling and Mining Applications 5 Inch Carburized Steel DTH Drill Bit for Water Well Drilling and Mining Applications 5 Inch Carburized Steel DTH Drill Bit for Water Well Drilling and Mining Applications

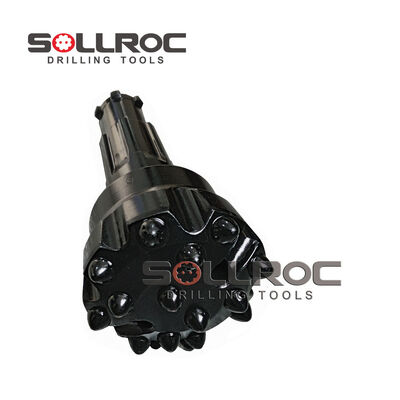

Imagem Grande :  5 Inch Carburized Steel DTH Drill Bit for Water Well Drilling and Mining Applications

Detalhes do produto:
Lugar de origem: Hunan, China
Marca: SOLLROC
Condições de Pagamento e Envio:
Quantidade de ordem mínima: 1
Preço: CN¥1,399.58
Contato

5 Inch Carburized Steel DTH Drill Bit for Water Well Drilling and Mining Applications

descrição
Peso: 16 QUILOGRAMAS Material: Aço carburizado
Tipo de processamento: tratamento térmico e processo de usinagem TAMANHO: 5 1/2''-6''
Diâmetro: 140-152mm Compressor de ar: Bits DTH de alta pressão de ar
Tamanho da haste: 133 mm Diâmetro do bit: 5 1/4"
buracos de ar: 2 Botões de medição: 7×φ16
Botões da frente: 6×φ14 Número da peça: QL50-130
Tamanho da haste: 140mm Diâmetro do bit: 5 e meio.
Botões de medição: 7×φ18
Destacar:

5 Inch DTH Drill Bit

,

Carburized Steel Down The Hole Bit

,

Water Well Drilling DTH Hammer Bit

SOLLROC QL50 5-Inch DTH Bit for Water Well Drilling
Product Overview

The DTH bit is the primary tool for cutting rock formations, and drilling performance is directly dependent on bit quality. Down-the-hole bits endure severe stress from striking pistons and abrasive cuttings passing at high velocity. When selecting the optimal bit, balance penetration rate against service life. In certain applications, sacrificing some bit life for increased penetration can be justified—a 10% increase in penetration typically offsets at least a 20% reduction in bit life.

Manufacturing Expertise
  • Over 10 years of specialized experience in drilling tools and spare parts manufacturing
  • Advanced production technology and equipment
  • Technical team with more than 13 years of professional experience
Technical Specifications
DTH Bits Shank Bit Diameter Air Holes Gauge Buttons Front Buttons Weight (Kg) Part No.
QL50 133mm / 5 1/4" 2 7×φ16 6×φ14 15.5 QL50-130
QL50 140mm / 5 1/2" 2 7×φ18 7×φ14 16.0 QL50-140
QL50 146mm / 5 3/4" 2 8×φ18 7×φ14 16.5 QL50-146
QL50 152mm / 6" 2 8×φ18 8×φ14 17.0 QL50-152
QL50 165mm / 6 1/2" 2 8×φ18 8×φ16 19.0 QL50-165
Product Features & Applications
DTH button bits Water well drilling Geothermal drilling Rock drilling Ground drilling Drilling tools Micropiling DTH hammers Unstable terrain drilling
Product Images

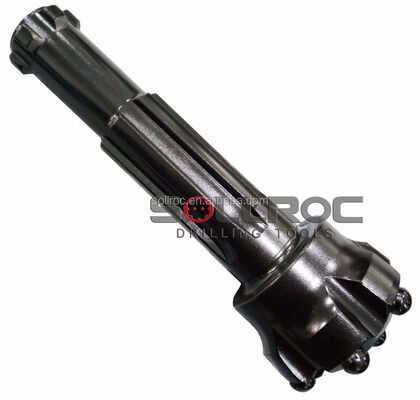

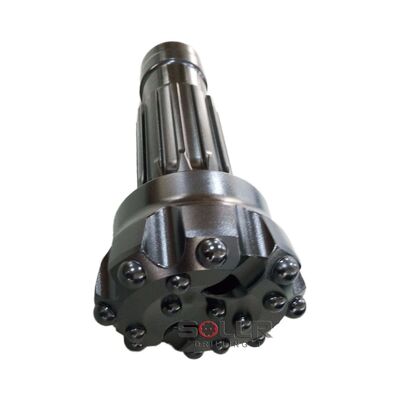

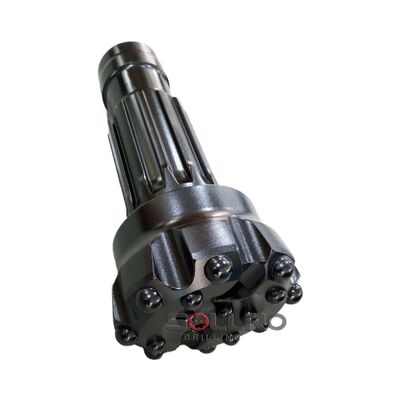

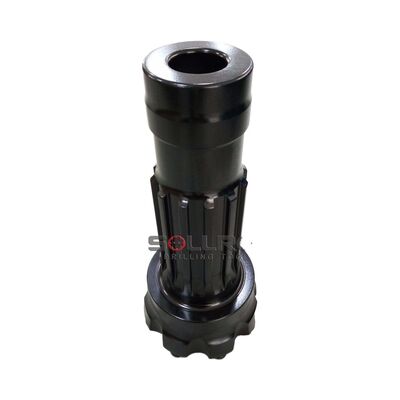

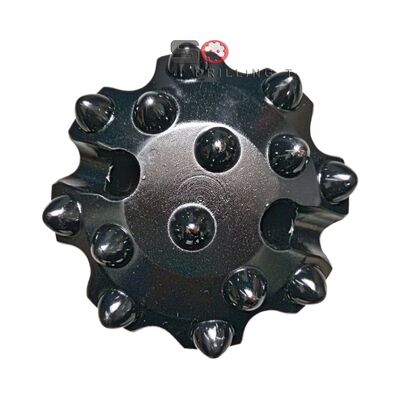

5 Inch Carburized Steel DTH Drill Bit for Water Well Drilling and Mining Applications 0 5 Inch Carburized Steel DTH Drill Bit for Water Well Drilling and Mining Applications 1 5 Inch Carburized Steel DTH Drill Bit for Water Well Drilling and Mining Applications 2
Shipping & Packaging

Shipping Methods: By Air, By Sea, or By Express

Packaging: Ply-wooden cases with pallet for secure transportation
